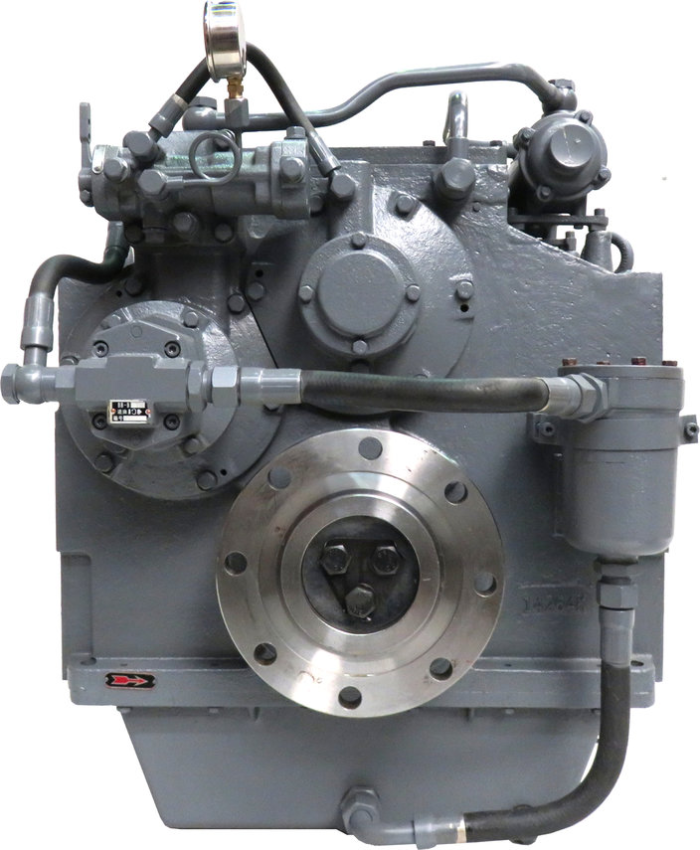

The Advance MB270A Marine Gearbox, now available in the UAE, is a high-performance marine transmission solution designed for medium and small vessels such as fishing boats, transport boats, tugboats, passenger boats, and light commercial craft. Built with a vertically offset one-stage design, this gearbox combines compact size, high reduction ratio, light weight, and easy maintenance — making it ideal for demanding marine operations in UAE waters.
Featuring ahead and astern clutching, strong propeller thrust capacity, and multiple control options (flexible shaft, electrical, or pneumatic), the MB270A delivers smooth direction changes and efficient power transfer for reliable cruising and maneuvering.
-
Brand: Advance Gearbox
-
Model: MB270A
-
UAE Price: AED 16,000
-
Designed for: Fishing boats, tugboats, transport, passenger vessels
-
Functions: Speed reduction, ahead/astern clutching, propeller thrust bearing
-
Compact Design: Small size, easy installation & maintenance
-
High Thrust: Rated thrust of 39.2 kN
-
Flexible Control: Push-pull flexible shaft / Electrical / Pneumatic
-
Robust Build: Strong, durable, and marine-tested
Technical Specifications
-
Input Speed: 1000–2500 r/min
-
Reduction Ratios Available:
-
4.05, 4.53, 5.12 (0.147 kW/r/min)
-
5.50 (0.134 kW/r/min)
-
5.95 (0.110 kW/r/min)
-
6.39, 6.82 (0.088 kW/r/min)
-
-
Rated Thrust: 39.2 kN
-
Center Distance: 270 mm
-
Dimensions (L×W×H): 594 × 810 × 868 mm
-
Net Weight: 675 kg
-
Flywheel Fitment: SAE 18, 16, 14
-
Bell Housing: SAE 0, 1
